Head and Block Resurfacing Equipment
In the world of engine rebuilding and remanufacturing, the margin for error is nonexistent. The surface finish of a cylinder head or engine block dictates the success of a rebuild, influencing everything from gasket sealing to compression ratios. For automotive shops and industrial service centers, having the capability to perform precise automotive head and block resurfacing in-house is a game-changer. Jenkins Equipment is proud to offer the RP1000, a premier resurfacing solution designed to meet the rigorous demands of modern engine machining.
Whether you are servicing passenger cars, light trucks, or heavy industrial vehicles, the RP1000 delivers the accuracy and versatility required to produce factory-level results. At Jenkins Equipment, we don’t just supply machinery; we provide the tools that allow your shop to control quality, reduce outsourcing costs, and maximize profitability.
The Critical Role of Precision Resurfacing
An engine’s efficiency relies on a perfect seal between the cylinder head and the block. Over time, heat cycles and stress can cause these surfaces to warp or develop imperfections. Installing a new head gasket on an uneven surface is a recipe for failure, leading to costly comebacks and damaged reputations.
Investing in high-quality automotive head and block resurfacing equipment ensures that every mating surface is perfectly flat and finished to the correct roughness average (Ra). This precision is essential for modern multi-layer steel (MLS) gaskets, which require a specific surface texture to seal correctly. By bringing this capability into your shop with the RP1000, you guarantee that every engine leaving your bay is built on a solid, true foundation.

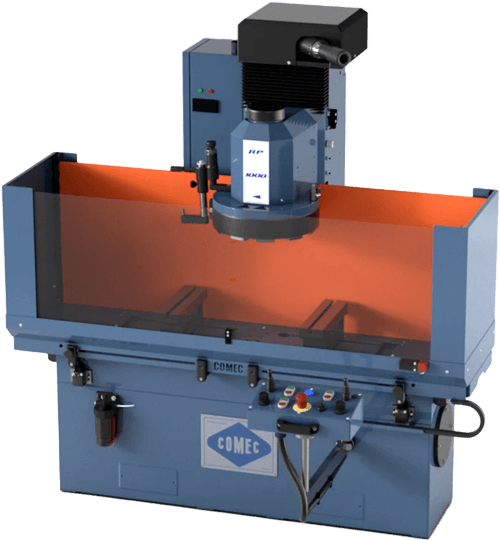

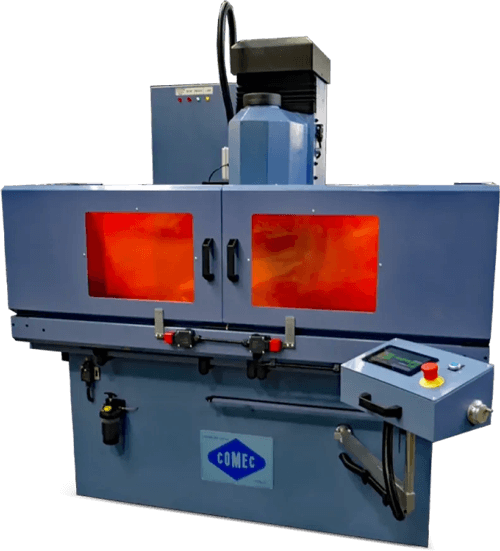

Meet the RP1000 Head and Block Resurfacer
The RP1000 is engineered for workshops that refuse to compromise on quality. It serves as a versatile workhorse capable of handling cylinder heads and engine blocks for both cars and trucks. Its design focuses on rigidity, ease of use, and adaptability to various materials, from cast iron to aluminum.
Unmatched Rigidity and Construction
Precision starts with stability. The RP1000 is constructed with widely ribbed cast iron of the highest quality. This robust design applies to the base, table, column, and head, offering exceptional rigidity. This structural integrity eliminates vibration during the cutting process, which is critical for achieving a mirror-smooth finish without chatter marks.
Advanced Control for Superior Results
The RP1000 features sophisticated controls that give operators complete command over the machining process:
- Recirculating-Ball Screw Feed: The table feed is operated by a high-precision recirculating-ball screw. This mechanism ensures smooth, consistent movement even at slow feed speeds, which is vital for achieving fine finishes.
- Adjustable Spindle Speed: An inverter controls the spindle speed (300 to 1500 RPM), allowing the operator to dial in the perfect cutting speed for the specific material being machined. Whether you are grinding cast iron with abrasive sectors or cutting aluminum with PCD inserts, you can optimize the process for the best result.
- Variable Table Feed: A separate frequency inverter controls the motoreducer for the table feed, allowing for wide adjustments via a potentiometer. This flexibility ensures the feed rate matches the material hardness and the desired surface finish.
Versatility for Every Job
The RP1000 is designed to handle a diverse range of workpieces. With a maximum workpiece length of 895mm and a width of 355mm, it easily accommodates most automotive and light industrial applications. The machine includes a segmented grinding wheel for cast iron and a cutting tool holder for aluminum, making it a true all-in-one solution for automotive head and block resurfacing.
Why Partner with Jenkins Equipment?
Purchasing an RP1000 is an investment in your shop’s future, and choosing the right supplier is just as important as selecting the machine. Jenkins Equipment brings decades of specialized industry knowledge to the table. We understand that a machine is only as good as the support behind it.
Expertise You Can Trust
We go beyond the spec sheet. Our team understands the nuances of engine metallurgy and machining dynamics. When you partner with Jenkins Equipment, you gain access to experts who can help you optimize your setup for specific applications, ensuring you get the most out of your RP1000 from day one.
Comprehensive Support and Accessories
The RP1000 comes equipped with essential features like a rapid head movement system, an efficient cooling plant with a settling tank, and a wheel dressing assembly. However, specific jobs require specific tools. Jenkins Equipment offers a full range of optional accessories, including adjustable fixtures for complex cylinder heads, V-block mounting kits, and rotating backing pads for grinding flywheels or brake discs. We ensure you have the complete package to handle any job that comes through your door.
Partner with Jenkins Equipment Today
Our commitment to quality, combined with the superior performance of the RP1000, provides the competitive edge your business needs. Contact the experts from Jenkins Equipment today to learn more about the RP1000 and how we can help you elevate your machining standards.
